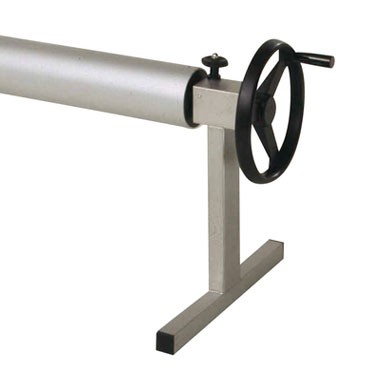

Delinox reel system wide model L8 REF : W-ENPT03100

Reel system Delinox great length

Reel system Delinox great length

  • cf-group-products.png
  • made-in-france.png
  • 3-year-warranty.png
DEL
  • Use : Individual
  • Maximum pool length (m) : 20.00
  • Maximum pool width (m) : 7.50
  • Version : Manual
Need advice?
+33 9 70 72 5000
From monday to friday 08:30 am -12:30 am & 1:30 pm-5:30 pm

Product Bonuses

  • Anodised aluminium tube.
  • Ideal for rolling foam covers.
  • Better control when unrolling the cover using the strap brake system.
  • Rolling is easy thanks to the bearing block ball bearings.

Technical specifications

TYPE OF POOL

  • Delinox for large pools: for pools up to 7.50 x 20.00 m..

TYPE OF COVER

  • For all bubble and foam covers.
  • Reel system delivered pre-fitted with elastic straps (straps for smooth tube to be ordered with cover).

    • END CAPS

    • Polyamide end caps.
    • Ø 20 mm stainless steel shaft.

    TUBE

    • Delinox large pools: anodised aluminium telescopic tube, Ø 130 mm, thickness 4 mm, smooth.

    END-STANDS

    • Passivated grade 304 L stainless steel.
    • Vertical upright: 80 x 40 mm, thickness 1.50 mm.
    • Horizontal upright: 40 x 40 mm, thickness. 1.50 mm.
    • 2 stainless steel ball bearings.

    BRAKE

    • Strap braking system ensuring the slowing or blockage of the shaft.

    TYRE

    • Inflatable tyre with inner tube (delivered un-inflated).

    WHEEL

    • Ø 300 mm wheel with swivelling handle.

    PACKING DETAILS

  • Tube: 1 length of 8.30 x ø 0.15 m.
  • End-stands: 1 pack of 0.80 x 0.60 x 0.35 m
  • Manuel weight: 36 kg.

    • Documents to download

    More documents
