VESUVIO standard hot/cold heat pump - 8.6kW / 12kW REF : VES12R

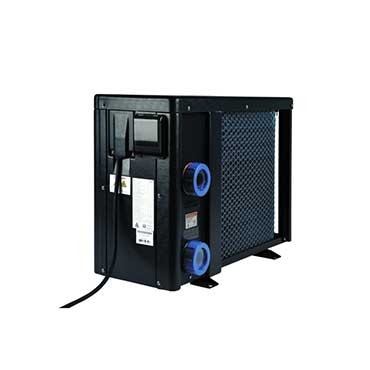

Vesuvio Standard Back
VITALIA
- Water operating range ( °C) : +5 °C to +35 °C
- Air operating range ( °C) : 0 °C to +43 °C
Log in
To get a price
and place an order,
Need advice?
+33 9 70 72 5000
From monday to friday 08:30 am -12:30 am & 1:30 pm-5:30 pm
+33 9 70 72 5000
From monday to friday 08:30 am -12:30 am & 1:30 pm-5:30 pm
Product Bonuses
THE PRODUCT BONUSES
- Reversible.
- During heat waves, the cold mode :
- maintains the temperature for greater bather comfort,
- limits fading of the coatings,
- limits the proliferation of algae.
Technical specifications
- Gas/Load : R32
- Compressor: Rotary
- Expansion : Capillary
- Hydraulic diameter (mm): 50
- Heating capacity (kW) (air 26°C, water 26°C, humidity 80%): 12
- COP (air 26°C, water 26°C, humidity 80%) : 5.6
- Heating capacity (kW) (NF-414: air 15°C, water 26°C, humidity 70%): 8.6
- COP (NF-414: air 15°C, water 26°C, humidity 70%): 4.3
- Cooling capacity (kW) (air 35°C, water 28°C, humidity 80%):6.8
- Recommended flow rate (m³/h):4.5-6.5
- Power rating (kW) at 15/25/70%: 1.9
- Power supply: 220-240 V / 1Ph 50 Hz
- Nominal current (A): 8
- Acoustic pressure dB(A) at 10 m: 29.5
- Overall dimensions of package (mm) : 961 x 312 x 658
- Dimensions of box (mm): 1040 x 365 x 700
- Net weight/gross weight (kg): 60/68
Rear panel :
- Control monitor.
- ABS anti-corrosion cowling mounted on a metal frame.
- «Bluefin»-treated corrosion-resistant blades.
Tips
SELECTIVE CRITERIA, A HEAT BALANCE ASSESSMENT IS ESSENTIAL TO DETERMINE THE SUITABLE MODEL.
