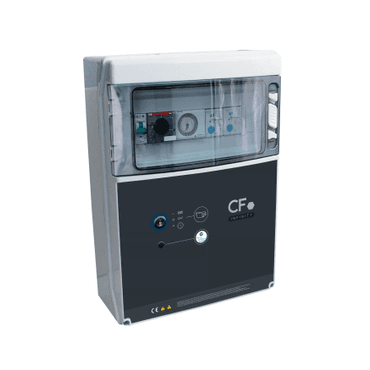

INFINITY Control box for infinity pool, fittings Ø 50mm REF : INFINITY50

• Hydraulic piloting and control on infinity pool’s automatic shutter.
• Thanks to the “Secured Level Control” technology, your shutter closes on an infinity pool at an adjusted level, thus avoiding the risks of accidents related to overflows.
• Filtration start-up depending on whether shutter is open/closed, in accordance with EN16713 “filtration - treatment” standards.
• Warning light for water level compliance.
• Economical and environmentally friendly:
- Pool’s levels are adjusted in a closed circuit with no waste and no need to add water,
- Can reduce heat loss and use of chemical products.
• Requires addition of a special pump for creating a closed circuit to filter pool water without overflowing.
The thermal magnetic circuit-breaker is not included in the kit and must be purchased separately according to the chosen pump power.

KIT INCLUDES:

• Piloting unit, single-phase or three-phase connection, IP55.
• 2 check valves.
• 1 automatic valve, 50 or 63 mm fittings.
• 5 stainless steel sensors + adequate PVC pipe for installation.

For pools bigger than > 90 m3, add an additional automatic valve. It is advisable to choose the kit with box Infinity for 63 mm diameter fittings to minimize load losses.

To create your branched circuit, refer our CF Premium and CF Comfort filtration pumps in the Filtration section.

Consider our range of thermal magnetic circuit-breakers.
