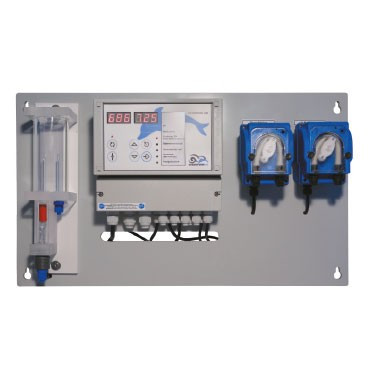

Centrale de contrôle pH Rx 3L/h REF : CFCONTROL100

• Measurement and regulation for Chlorine/pH, Bromine/pH, Active Oxygen/pH, or Salt/pH.
• Adjustable peristaltic pumps: Maximum 3 L/h with a maximum counterpressure of 1.5 bar.
• Panel dimensions: 600 x 350 x 115 mm.
• Protection type: IP65.
• Digital display: Two 3-line displays with 6 indicator LEDs.
• Remote monitoring via a dedicated app (WiFi-enabled).
• Redox control: Continuous dosing monitoring for 60 minutes (programmable); preset setpoint: 600 mV (adjustable from 300 mV to 900 mV). Injection interval adjustable from 10 to 100 seconds.
• pH control: Measurement range: 2 to 9.99. Resolution: pH 0.01. Preset setpoint: 7.2 pH. Regulation range: 5 - 9. Calibration: Manual using pH 7.0 and pH 4.0 solutions.
• H2O2 control: Active oxygen dosing based on treated volume, water temperature, and filtration time.
• Electrolysis control: Regulates electrolyzer production according to the Redox potential setpoint.
• Bromine control: Supplied with a dosing pump for pH and a solenoid valve to manage water flow through the brominator (not included).
• Alarms: Activated for measurement water shortage or dosing alarm..

A grounding pool is recommended for all installations that include a salt chlorinator or pH/Redox regulation system. Refer to the manufacturer’s instructions for installation.

DON’T FORGET !

To simplify the installation of the CF Control :

1514RED : Short male reducer ½" x female ¼".

PEC5015 : Saddle clamp 50 x ½'' ;

PEC6315 : Saddle clamp 63 x ½''.

Use Electrode Cleaner for probe maintenance.
